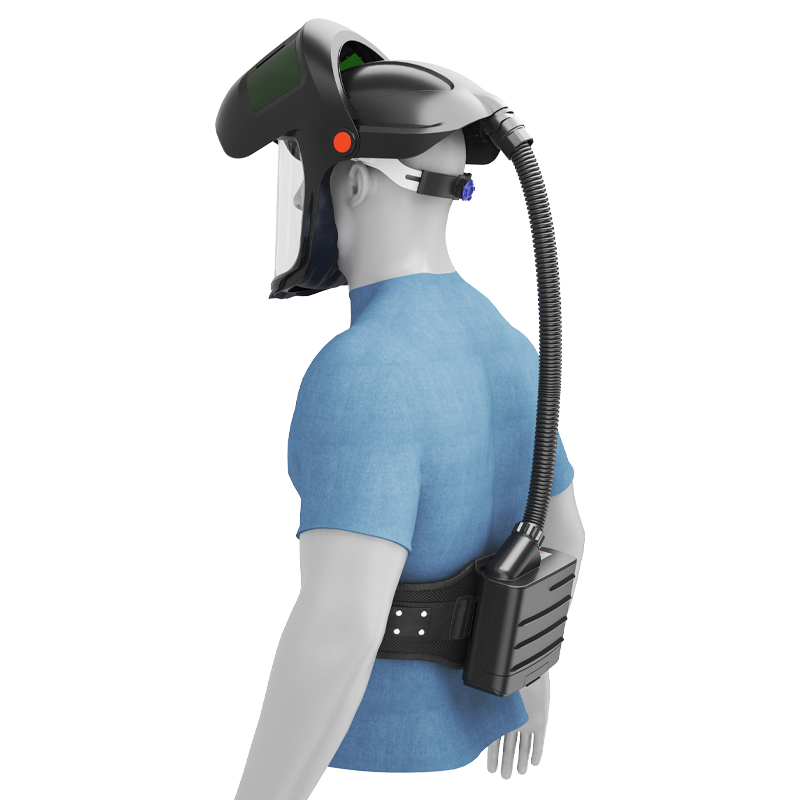

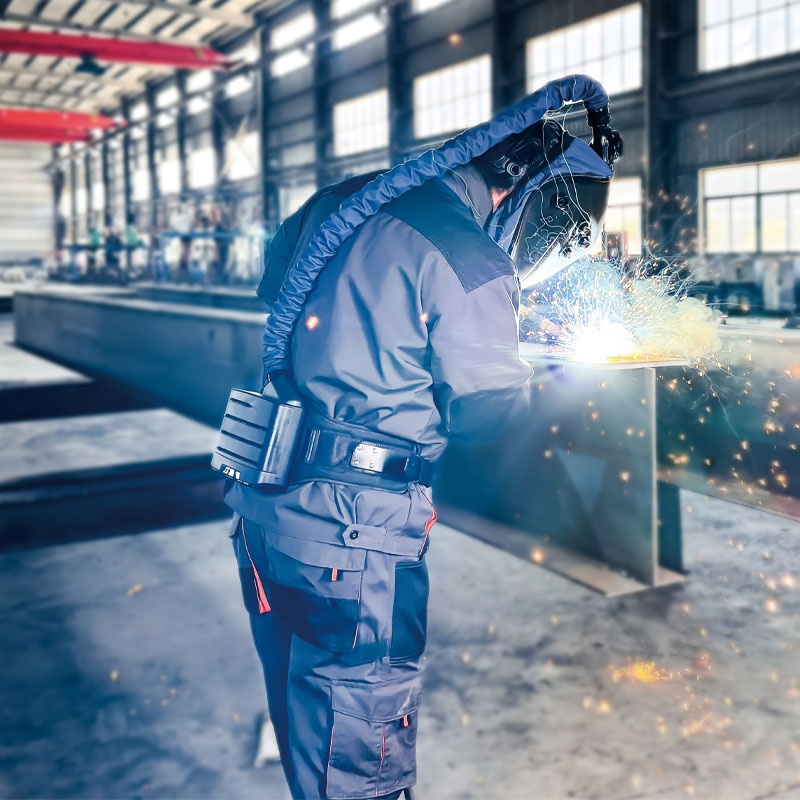

This advanced flip-up welding helmet features an auto-darkening lens for optimal eye protection and visibility during welding tasks. Integrated with a PAPR system compliant with EN12941 TH3PRSL standards, it provides a high level of respiratory protection, ensuring safety and comfort in demanding work environments.
Item No :
BXH-3001customized logo :
100pcsChargeable Lithium Battery :
Standard 3000mAh, Heavy duty 6000mAhRunning time :
6-8 hours for standard lithium battery; 12-16 hours for heavy duty batteryFilter efficiency :
99.97%CE certification :
EN12941Lead Time :
20 daysWeight :
820g including standard batteryAirflow :

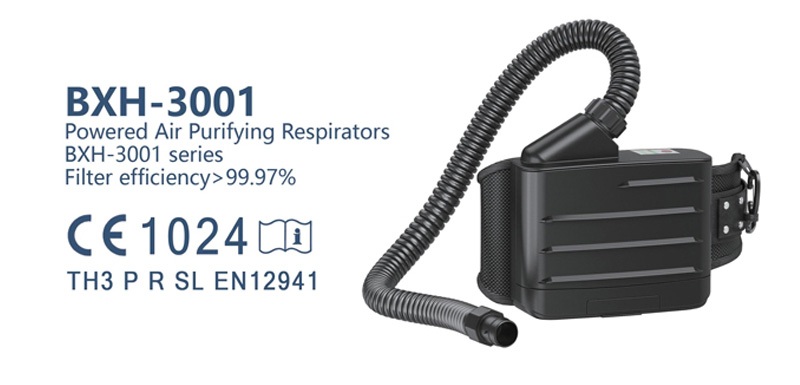

Level 1:170L/Min; Level 2: 210L/MinThe BXH-3001 is a high-performance PAPR welding helmet designed to deliver both respiratory and facial protection in demanding industrial environments. Equipped with an ultra-wide viewing area and instant auto-dimming functionality, it achieves the highest optical clarity rating of 1/1/1/1 under CE standards—ensuring welders enjoy crisp, distortion-free vision and fast reaction time. Engineered for safety, comfort, and performance, the BXH-3001 is an ideal choice for professionals seeking reliable protection without compromise.
Different Part | CE certification(standard) |
PAPR | EN12941 |
Helmet | EN175/EN379 |
Specification | |||
Turbody Size-L*W*H | 190*68*188mm | Alarm System | Low Battery and Jammed filter-Audible+Vibration |
Working Noise | <75dB | Air Tube | Diameter 35mm and length 0.65M, PU quality |

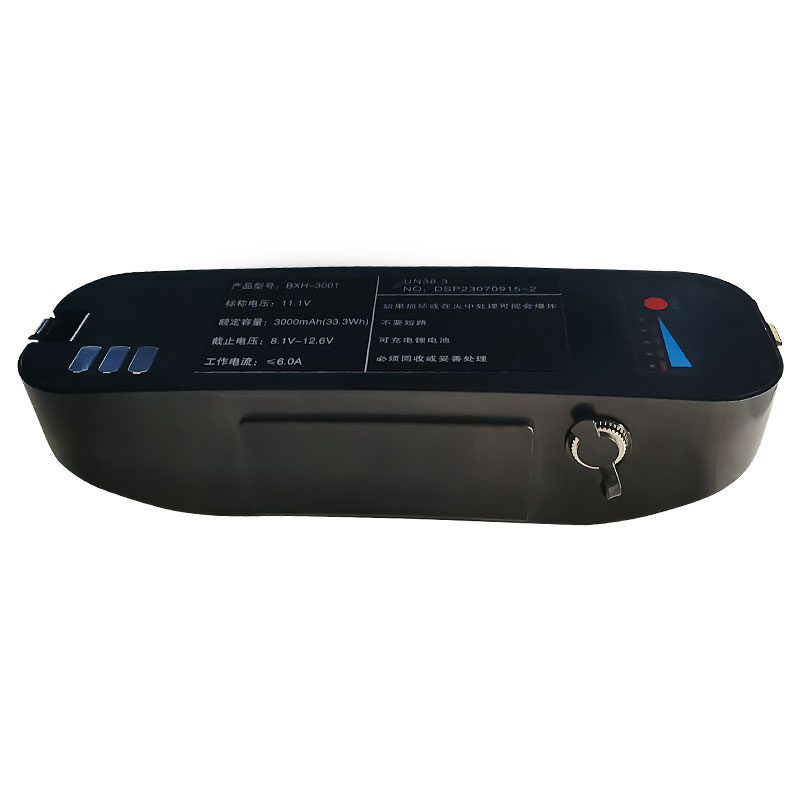

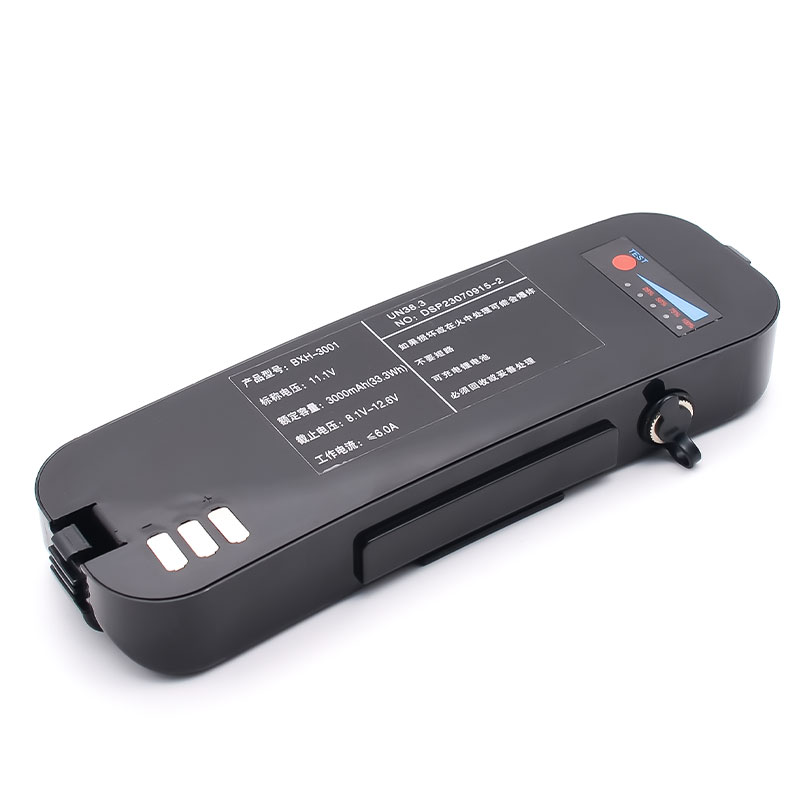

Life of Motor | >50000 hours | Standard Lithium battery | 3000mAh/33.3Wh; 11.1V Running time for levle 1: 8hours; Level 2: 6 hours Battery charge time: 2.5 hours Weight: 236+/-2g |
Air flow of Level 1 | 170+Lpm(Liter per minute) | Heavy duty Lithium battery | 6000mAh/66.6Wh; 11.1V Running time for levle 1: 16hours; Level 2: 12 hours Battery charge time: 4 hours Weight: 397+/-2g |
Air flow of Level 2 | 210+Lpm(Liter per minute) | Charging Life | >500 times |
Fliter effiency | 99.97% | Input power | 110V-240V |
Filter Level | TH3 PRSL | Output power | 11.1V |
Leakage Rate | <0.2%(TH3) | Complete unit weight(including standard battery) | 820+/-3g |
![]() |
![]() |

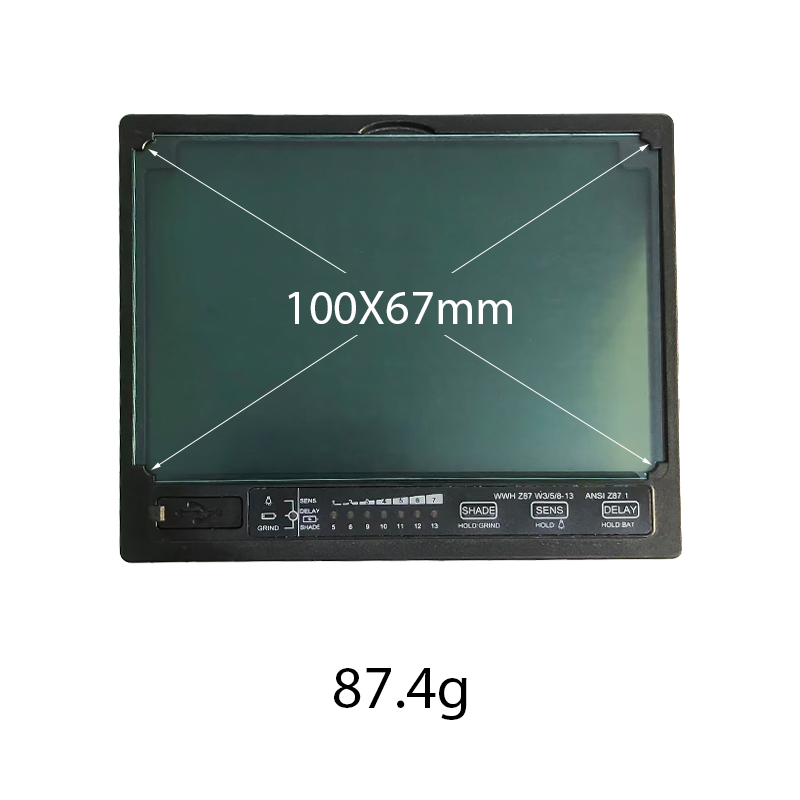

Dimming

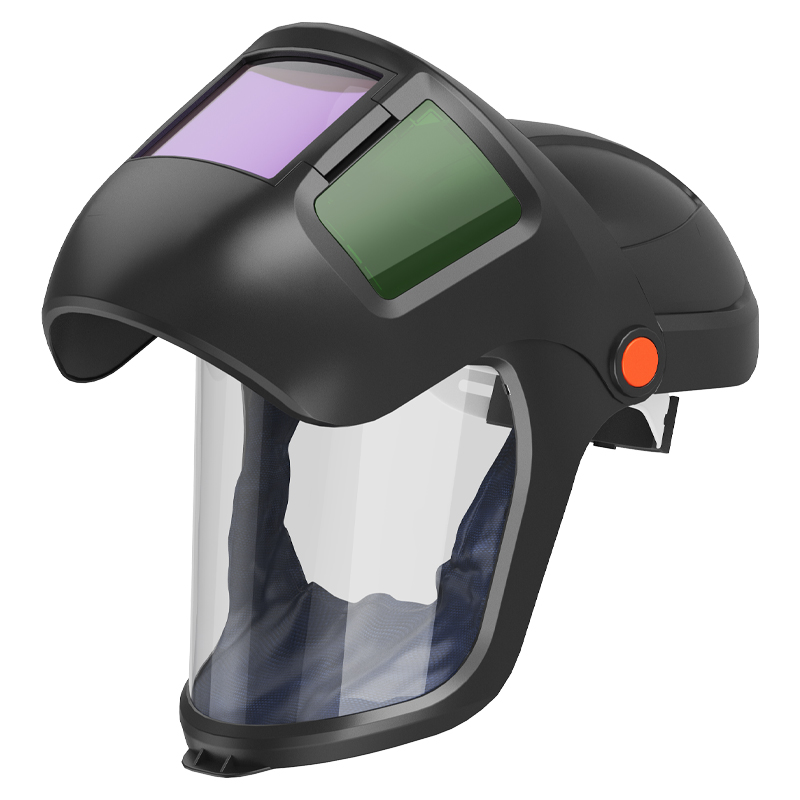

Auto-Darkening Helmet

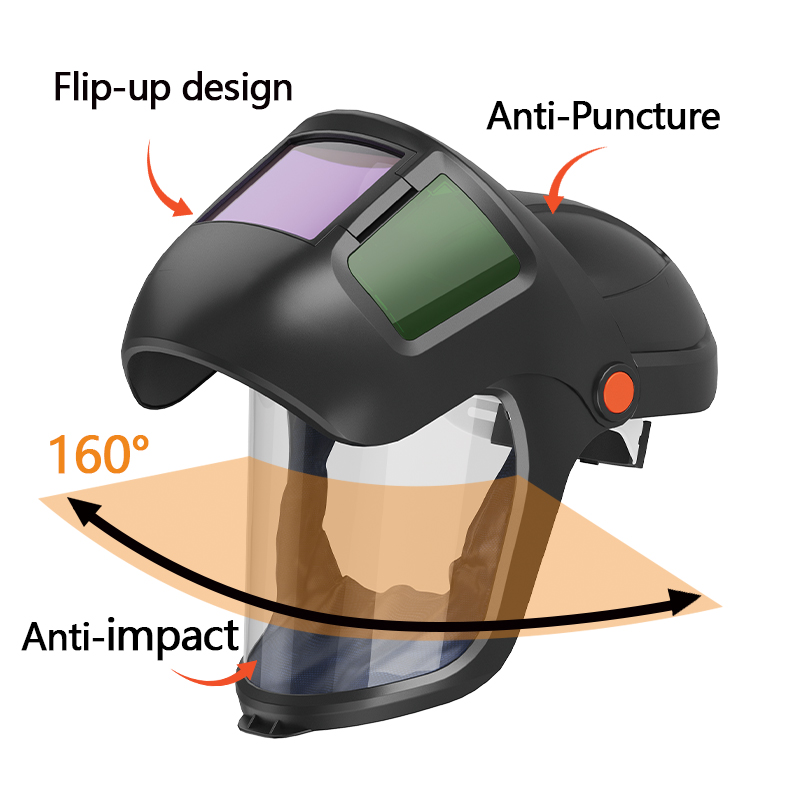

Flip-up design can switch working mode for grinding,side window increase working in field.The hard hat is anti-impact for face shield, the top is anti-puncture, can provide fully protection for head.

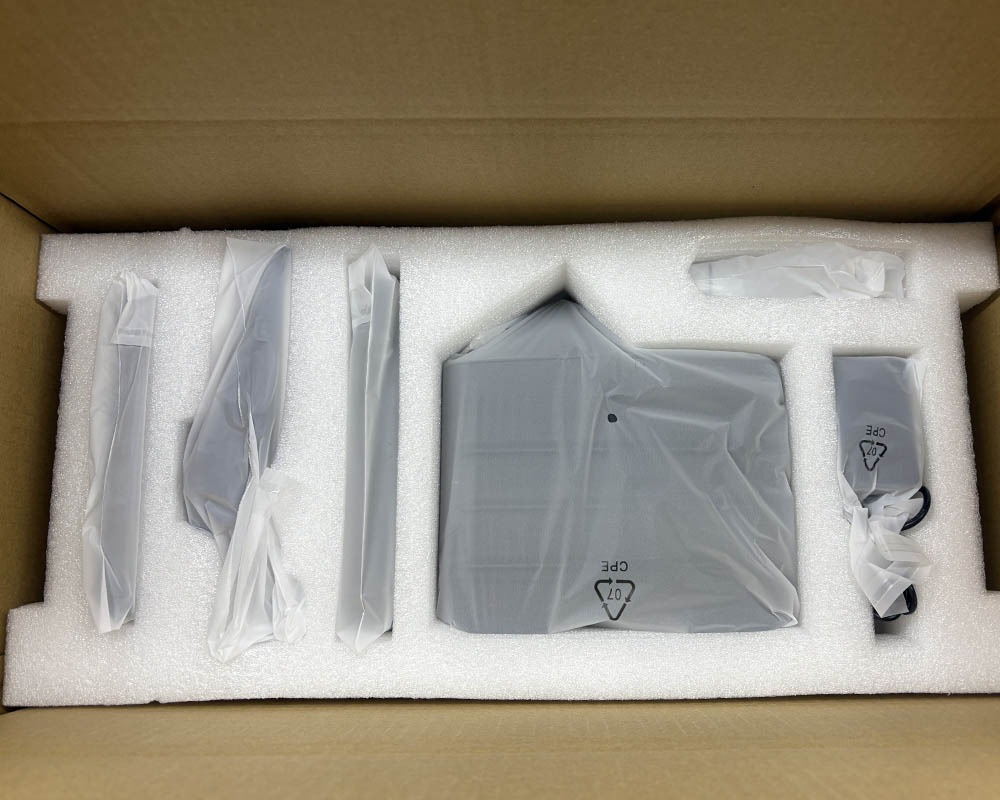

Package with inner Foam each carton
Feature: Well organized for accessories in foam and then carton to avoid damage during transportation

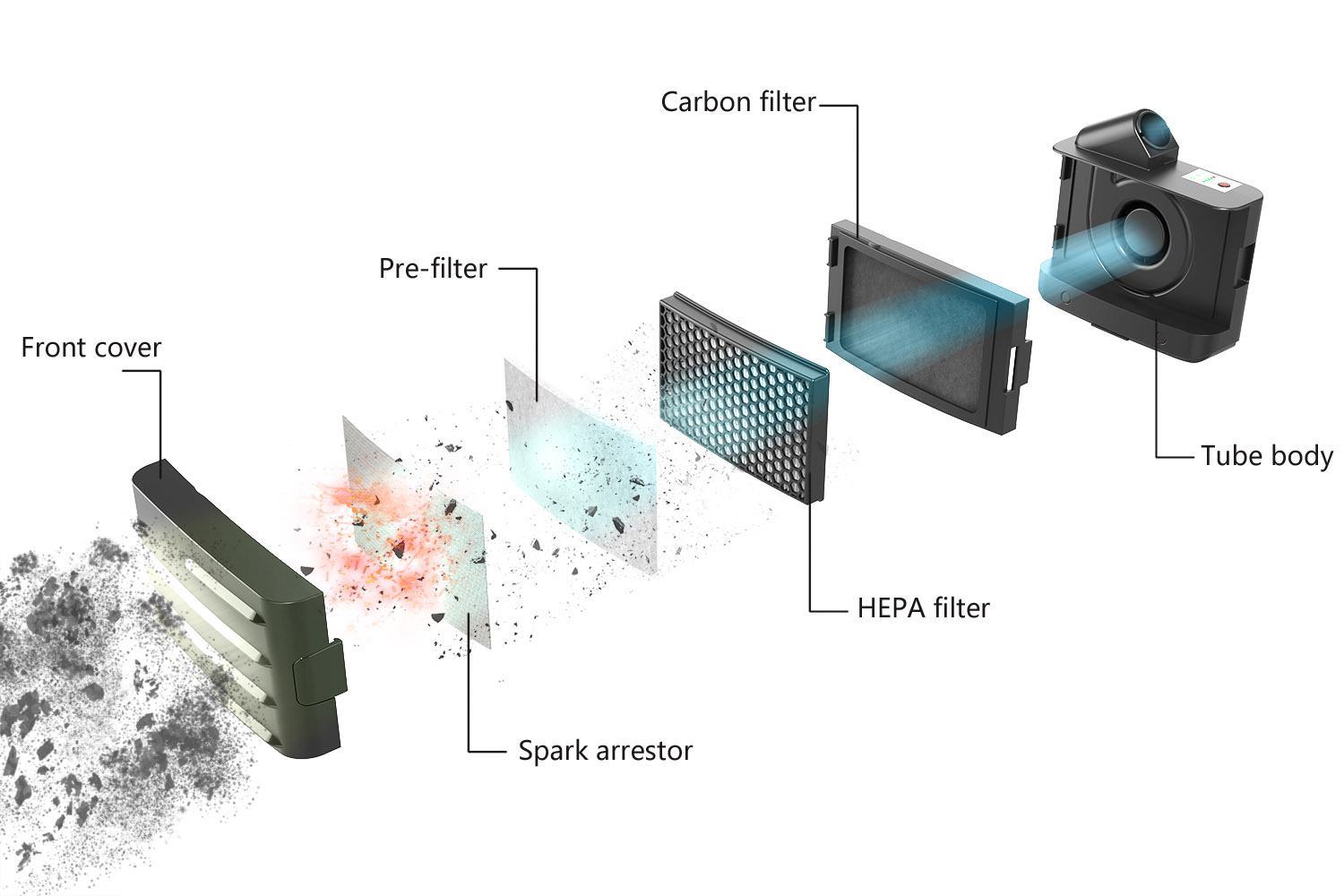

Contents: HEPA filter/Multi-connector/Lithium battery/PAPR body/Charger in one customized foam
